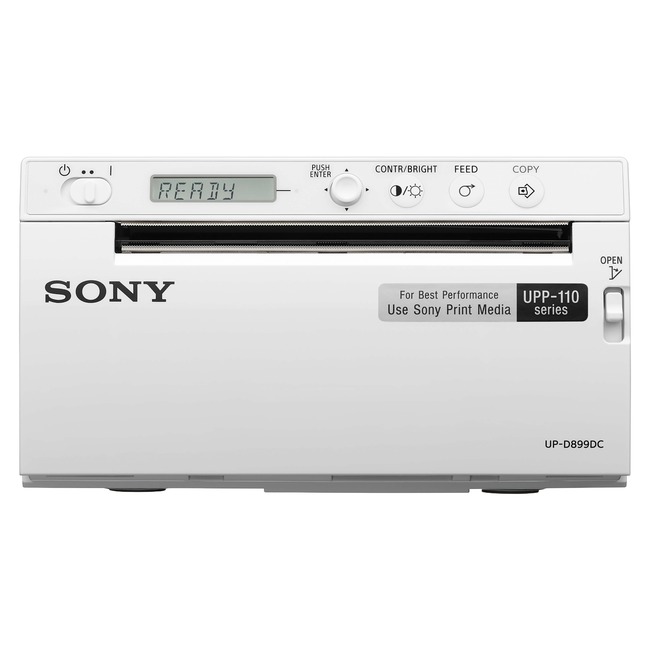

Sony UP-D899DCDigital Graphic Printer
Sony's UP-D899DC is the DC-powered digital model of the UP-899 series, printing over USB Type-C and running on 12-24V DC for integration into carts and systems without an AC supply. Compact and lightweight, it delivers high-resolution black-and-white prints for ultrasound systems, mobile C-arms, and other compatible medical imaging systems.
What sets the UP-D899DC apart
Direct Thermal Printing
Photo-quality black & white A6 prints at approximately 325 dpi with 8-bit (256 gray level) processing.
USB Type-C Digital Printing
Prints over a Hi-Speed USB 2.0 Type-C connection for straightforward digital integration.
DC 12-24V Power
Runs directly on 12 V to 24 V DC, for integration into ultrasound carts and systems without a dedicated AC supply.
Most Compact of the Series
Reduced depth of just 165 mm and mass of approximately 1.45 kg, the lightest and shallowest model in the UP-899 series.
New Front Panel Design
White backlit LCD and flat control buttons enhance operability, with easier menu navigation.
Improved Dual Cutter
Dual cutter allows prints to be cut upward or downward. Manual door release opens the paper door even when powered off.
UP-D899DC Specifications
| Specification | Value |
|---|---|
| Printing Method | Direct thermal printing |
| Resolution | 325 dpi |
| Gradation | 8 bits (256 levels) processing |
| Paper Size | Paper width of 110 mm (4 3/8") |
| Printing Time | High-speed: approx. 2 sec/image; Normal: approx. 3.8 sec/image |
| Interface | Hi-Speed USB 2.0 (Type C, for data receiving) |
| Power Requirements | DC 12-24V |
| Dimensions | 154 x 88 x 165 mm (6 1/8 x 3 1/2 x 6 1/2 in) |
| Mass | Approx. 1.45 kg (3 lb 3.1 oz), printer only |
| Compatible Media | UPP-110HG, UPP-110HD, UPP-110S |
Inputs & Outputs
Buying the Sony UP-D899DC
| Model | Sony UP-D899DC — Digital Graphic Printer |
| Manufacturer | Sony |
| Supplied by | Chilcutt Medical, LLC — Authorized Sony Medical Systems Integrator |
| Documentation | Sony UP-D899DC brochure (PDF) Chilcutt Medical Product Summary (PDF) |
| Federal & VA | SAM.gov registered · CAGE 20KG8 · Federal & VA purchasing |
| Quotes | Request a quote or call 615-406-3294 |
Sony UP-D899DC questions
What video connections does the Sony UP-D899DC have?
Per Sony’s specifications: USB Type-C, DC IN Connector. The full list is in the specifications above.
Before you order, ask us to confirm compatibility with your camera system, recorder or display.
Where can I download the Sony UP-D899DC brochure and technical documents?
How do I get a quote for the Sony UP-D899DC?
Request a quote or call Sam Chilcutt at 615-406-3294. Quotes come from Chilcutt Medical, LLC, an Authorized Sony Medical Systems Integrator.
Can VA and other federal facilities buy the Sony UP-D899DC from Chilcutt Medical?
Chilcutt Medical, LLC is registered in SAM.gov (CAGE 20KG8) and quotes federal and VA facilities. See Federal & VA purchasing.
