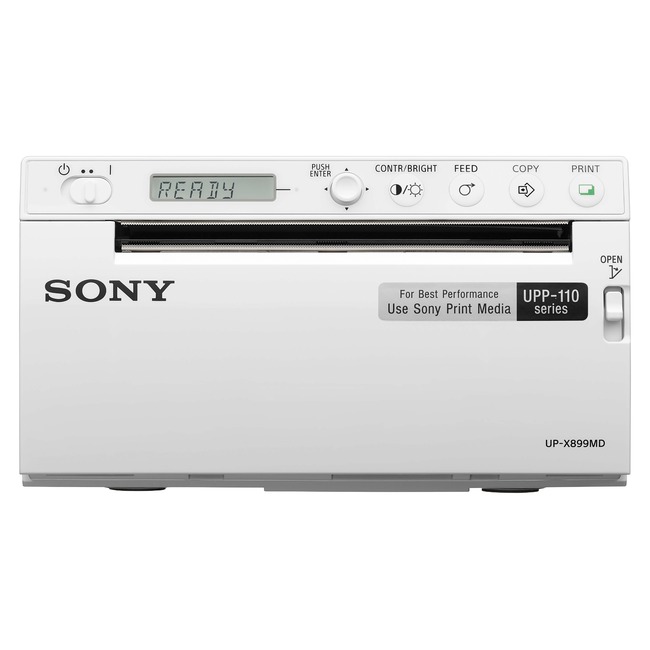

Sony UP-X899MDHybrid Graphic Printer
Sony's UP-X899MD is the hybrid model of the UP-899 series, supporting both digital USB and analog video workflows. Compact, lighter, and more energy-efficient than its predecessor, it delivers high-resolution black-and-white prints for ultrasound systems, mobile C-arms, and other compatible medical imaging systems.
What sets the UP-X899MD apart
Direct Thermal Printing
Photo-quality black & white A6 prints at approximately 325 dpi with 8-bit (256 gray level) processing.
Digital + Analog Input
USB Type-C digital input plus analog composite video input for flexible use with a wide range of modality devices.
USB Flash Drive Storage
Automatically stores printed still images from both digital and video sources to a connected USB flash drive.
Optional Wireless Printing
The optional UPA-WU10 wireless printing solution offers a simple, cable-free connection alternative to USB cabling.
Compact, Lighter, Energy-Saving
Reduced depth (240mm to 208mm) and weight (2.5kg to 2.0kg) versus the predecessor UP-X898MD, with 10-20% lower power consumption.
Improved Dual Cutter & Controls
New white backlit LCD and flat-button control panel, easier menu navigation, and a dual cutter for upward or downward paper cutting. Manual door release opens the paper door even when powered off.
UP-X899MD Specifications
| Specification | Value |
|---|---|
| Printing Method | Direct thermal printing |
| Resolution | 325 dpi |
| Gradation | 8 bits (256 levels) processing |
| Paper Size | Paper width of 110 mm (4 3/8") |
| Printing Time | High-speed: approx. 2 sec/image; Normal: approx. 3.8 sec/image |
| USB Flash Drive | Yes |
| Optional Wireless Printing | Yes (UPA-WU10) |
| Interface | Hi-Speed USB 2.0 (Type C); Video IN: BNC (NTSC/PAL composite) |
| Power Requirements | AC 100-240V, 50/60 Hz |
| Dimensions | 154 x 88 x 208 mm (6 1/8 x 3 1/2 x 8 1/4 in) |
| Mass | Approx. 2.0 kg (4 lb 6.5 oz), printer only |
| Compatible Media | UPP-110HG, UPP-110HD, UPP-110S |
Inputs & Outputs
Buying the Sony UP-X899MD
| Model | Sony UP-X899MD — Hybrid Graphic Printer |
| Manufacturer | Sony |
| Supplied by | Chilcutt Medical, LLC — Authorized Sony Medical Systems Integrator |
| Documentation | Sony UP-X899MD brochure (PDF) Chilcutt Medical Product Summary (PDF) |
| Federal & VA | SAM.gov registered · CAGE 20KG8 · Federal & VA purchasing |
| Quotes | Request a quote or call 615-406-3294 |
Sony UP-X899MD questions
What video connections does the Sony UP-X899MD have?
Per Sony’s specifications: USB Type-C, Video BNC (IN), Remote Control, Equipotential Ground Terminal. The full list is in the specifications above.
Before you order, ask us to confirm compatibility with your camera system, recorder or display.
Where can I download the Sony UP-X899MD brochure and technical documents?
How do I get a quote for the Sony UP-X899MD?
Request a quote or call Sam Chilcutt at 615-406-3294. Quotes come from Chilcutt Medical, LLC, an Authorized Sony Medical Systems Integrator.
Can VA and other federal facilities buy the Sony UP-X899MD from Chilcutt Medical?
Chilcutt Medical, LLC is registered in SAM.gov (CAGE 20KG8) and quotes federal and VA facilities. See Federal & VA purchasing.
Interested in the UP-X899MD?
Get a quote, schedule an on-site demo, or ask about compatibility with your existing equipment.
615-406-3294Call Sam Chilcutt directly · Sam@ChilcuttMedical.com
