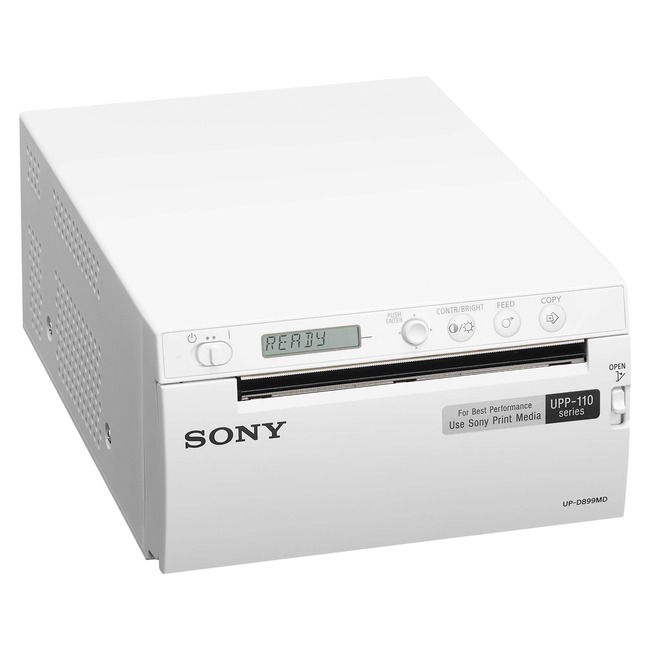

Sony UP-D899MDDigital Graphic Printer
Sony's UP-D899MD is the digital model of the UP-899 series, printing over USB Type-C. Compact, lighter, and more energy-efficient than its predecessor, it delivers high-resolution black-and-white prints for ultrasound systems, mobile C-arms, and other compatible medical imaging systems.
What sets the UP-D899MD apart
Direct Thermal Printing
Photo-quality black & white A6 prints at approximately 325 dpi with 8-bit (256 gray level) processing.
USB Type-C Digital Printing
Prints over a Hi-Speed USB 2.0 Type-C connection for straightforward digital integration.
Compact, Lighter, Energy-Saving
Reduced depth (240mm to 208mm) and weight (2.5kg to 2.0kg) versus the predecessor UP-D898MD, with 10-20% lower power consumption.
Improved Image Quality
New gamma curves enable improved matching accuracy with the source monitor.
New Front Panel Design
White backlit LCD and flat control buttons enhance operability, with easier menu navigation.
Improved Dual Cutter
Dual cutter allows prints to be cut upward or downward. Manual door release opens the paper door even when powered off.
UP-D899MD Specifications
| Specification | Value |
|---|---|
| Printing Method | Direct thermal printing |
| Resolution | 325 dpi |
| Gradation | 8 bits (256 levels) processing |
| Paper Size | Paper width of 110 mm (4 3/8") |
| Printing Time | High-speed: approx. 2 sec/image; Normal: approx. 3.8 sec/image |
| Interface | Hi-Speed USB 2.0 (Type C, for data receiving) |
| Power Requirements | AC 100-240V, 50/60 Hz |
| Dimensions | 154 x 88 x 208 mm (6 1/8 x 3 1/2 x 8 1/4 in) |
| Mass | Approx. 2.0 kg (4 lb 6.5 oz), printer only |
| Compatible Media | UPP-110HG, UPP-110HD, UPP-110S |
Inputs & Outputs
Buying the Sony UP-D899MD
| Model | Sony UP-D899MD — Digital Graphic Printer |
| Manufacturer | Sony |
| Supplied by | Chilcutt Medical, LLC — Authorized Sony Medical Systems Integrator |
| Documentation | Sony UP-D899MD brochure (PDF) Chilcutt Medical Product Summary (PDF) |
| Federal & VA | SAM.gov registered · CAGE 20KG8 · Federal & VA purchasing |
| Quotes | Request a quote or call 615-406-3294 |
Sony UP-D899MD questions
What video connections does the Sony UP-D899MD have?
Per Sony’s specifications: USB Type-C, Equipotential Ground Terminal. The full list is in the specifications above.
Before you order, ask us to confirm compatibility with your camera system, recorder or display.
Where can I download the Sony UP-D899MD brochure and technical documents?
How do I get a quote for the Sony UP-D899MD?
Request a quote or call Sam Chilcutt at 615-406-3294. Quotes come from Chilcutt Medical, LLC, an Authorized Sony Medical Systems Integrator.
Can VA and other federal facilities buy the Sony UP-D899MD from Chilcutt Medical?
Chilcutt Medical, LLC is registered in SAM.gov (CAGE 20KG8) and quotes federal and VA facilities. See Federal & VA purchasing.
