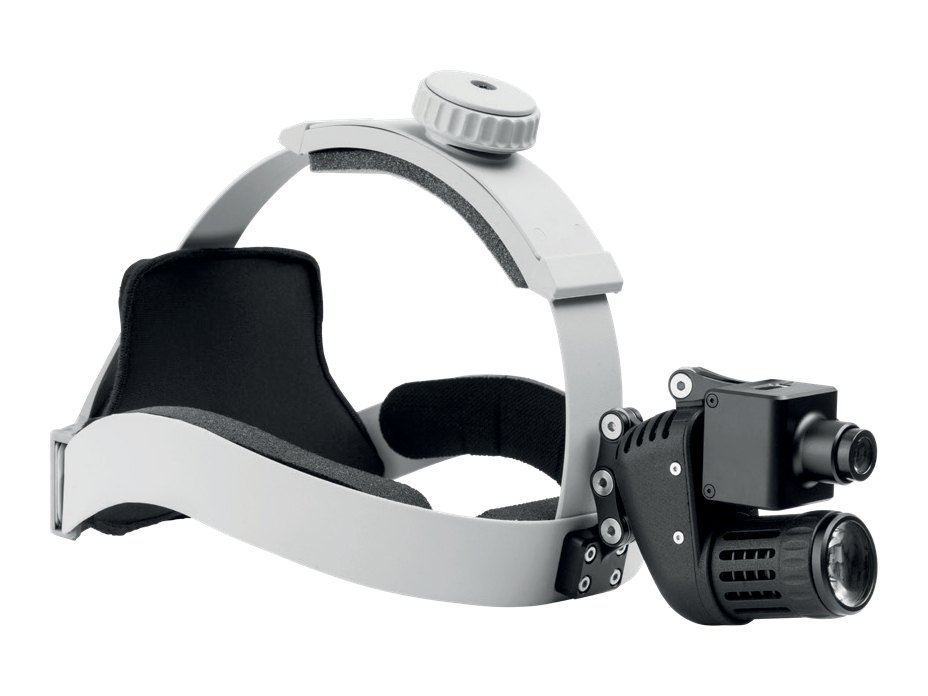

Rocoto HM11XSurgical Head-Mounted Wireless Camera and Light
FDA Listed — Class I, 510(k) Exempt (per Rocoto)The HM11X combines an LED surgical headlight and a 4K30 HDR camera on a lightweight headband, with a belt-worn wireless transmitter that sends the surgeon’s point of view to up to four monitors or recorders with ultra-low wireless transmission latency. It is built for training, education, documentation and live observation — showing the procedure as the surgeon sees it, without cables to the surgeon.
Availability on request — contact Chilcutt Medical to confirm availability and lead time.
Rocoto wireless video systems are manufactured by Rocoto Solutions and supplied independently by Chilcutt Medical, LLC. Rocoto products are not Sony products.
What the HM11X does
Surgeon Point of View
Shares the surgeon’s point of view on up to four monitors or recorders.
4K30 HDR Camera
Sony IMX678 CMOS sensor, 3840 × 2160 at 30 fps with Digital Overlap HDR / Clear HDR. Fixed focus 30–70 cm; 12 mm (default) or 16 mm lens.
Powerful LED Headlight
Up to 100,000 lux at a 40 cm working distance, adjustable from the transmitter’s intensity knob. 12 cm beam at 40 cm; 5700 K color temperature.
Lightweight, Wireless
Headband with camera and lamp; transmitter (437 g including battery) worn on a belt. Up to 3 hours of continuous use at maximum light intensity.
Ultra-Low Latency
Ultra-low wireless transmission latency for real-time video.
MD52X and CMU Compatible
Fully compatible with MD52X receivers and the Rocoto Central Management Unit (CMU). Up to 6 sets at the same location.
Secure Connection
AES-256 encryption with RSA-1024 key exchange.
Complete Kit
Ships with headband (camera and lamp), transmitter, 2 batteries, battery charger, belt, 2 screwdrivers and a carrying case.
Where the HM11X fits
- Surgical training and education
- Procedure documentation and recording
- Live observation of the surgeon’s view
- General surgery through specialized disciplines
HM11X Specifications
Certifications and regulatory status as stated by Rocoto in this model’s product documentation. Chilcutt Medical does not independently verify FDA listing status; current listing can be confirmed in the FDA establishment registration and device listing database.
| Specification | Value |
|---|---|
| Part Number | MDWL1_HM11x |
| Image Sensor | Sony IMX678 CMOS, 8.86 mm (1/1.8") |
| Video Format | 3840 × 2160 (4Kp30) |
| HDR | Digital Overlap HDR, Clear HDR |
| Focus / White Balance | Fixed focus 30–70 cm · Auto white balance |
| Lens | 12 mm (default) or 16 mm |
| Light | LED, maximum 100,000 lux at 40 cm working distance |
| Beam Size | 12 cm at 40 cm working distance |
| Color Temperature | 5700 K |
| Transmitter Dimensions | 4" × 6.4" (96 × 162 mm) |
| Weight | Transmitter: 437 g (including battery) |
| Mounting | Transmitter worn on a belt |
| Transmitter Interfaces | Light intensity knob (Off, On, 1–100K lux) · HDMI 1.4 in (from camera) · 12 V DC out to lamp · pairing button · USB-C firmware update · BLE/NFC · video/network LEDs |
| Wireless Bands | 5 GHz DFS and non-DFS, plus UNII-5 (5.925–6.425 GHz). Frequencies depend on regional approvals. |
| Bandwidth | 40 MHz |
| Encryption | AES-256, RSA-1024 key exchange |
| Range | Approximately 100 ft (30 m) |
| Multicast | Streams to up to 4 receivers |
| Coexistence | Up to 6 sets at the same location |
| Delay | ~1 ms |
| Power | 12 V DC from battery (RRC-2054) · 16 W at maximum light intensity |
| Operating Duration | Up to 3 hours continuous use at maximum light intensity |
| Operating Environment | 0–40 °C (32–104 °F), 25–75% relative humidity |
| Certifications | ISO 13485:2016 · FDA Listed — Class I, 510(k) Exempt (per Rocoto) · IEC 60601-1 · IEC 60601-1-2 · FCC CFR 47 Part 15 |
HM11X downloads
Rocoto HM11X questions
Is the Rocoto HM11X a Sony product?
No. Rocoto wireless video systems are manufactured by Rocoto Solutions and supplied independently by Chilcutt Medical, LLC. Rocoto products are not Sony products.
Which other Rocoto products work with the Rocoto HM11X?
- Rocoto MD52X — Receiver
- CMU — Rocoto Central Management Unit
Where can I download the Rocoto HM11X brochure and spec sheet?
How do I request a quote for the Rocoto HM11X?
Availability on request — contact Chilcutt Medical to confirm availability and lead time. Request a quote or call Sam Chilcutt at 615-406-3294. Chilcutt Medical handles equipment selection, quotations and purchasing.
