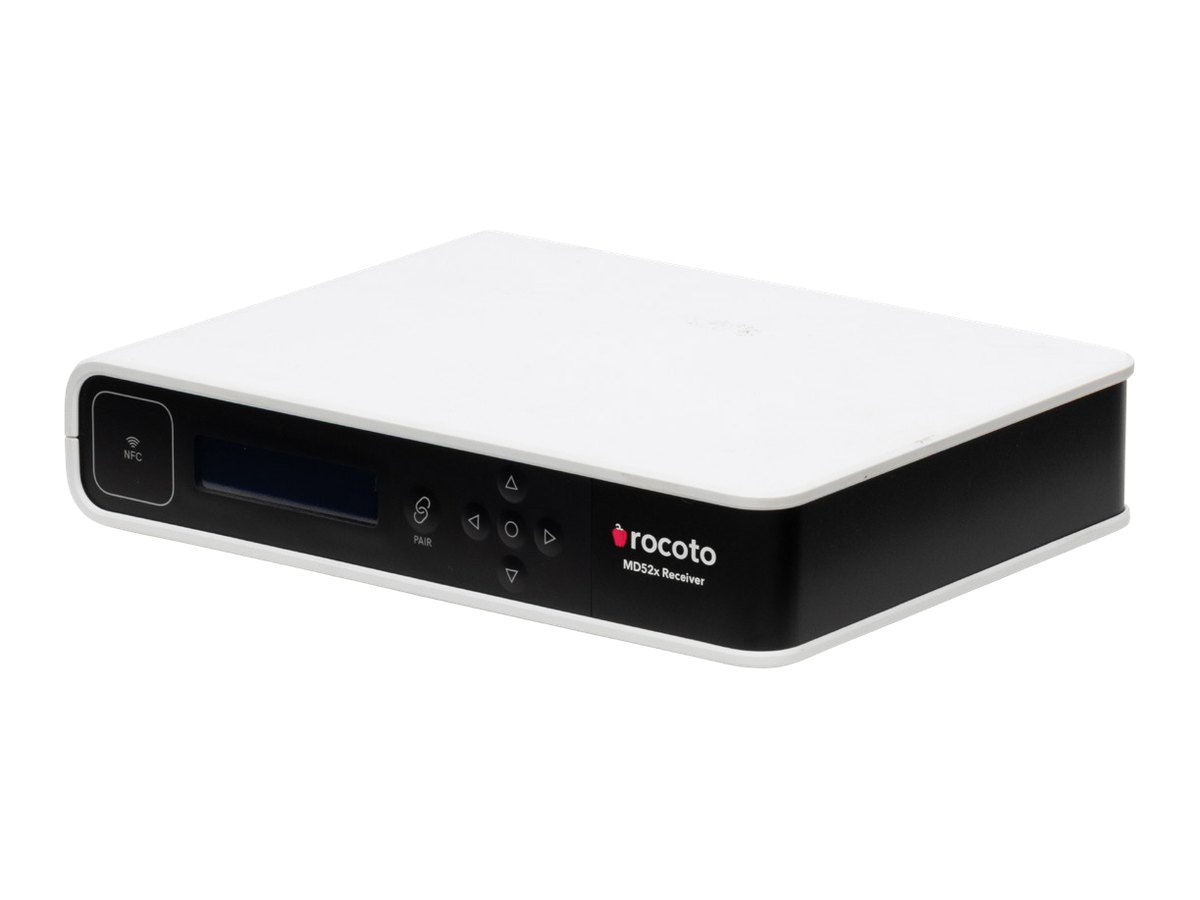

Rocoto MD52X4K60 Managed Medical Wireless Video Link
FDA Listed — Class I, 510(k) Exempt (per Rocoto)The MD52X is Rocoto’s advanced managed wireless video platform for ORs with multiple sources and displays. It carries 4K60 HDMI video with ultra-low wireless transmission latency and uses the Rocoto 2.0 protocol to turn transmitters and receivers into a controllable video matrix. With the Rocoto Central Management Unit (CMU), devices can be paired and configured remotely — no physical access needed to units mounted behind displays or inside protective housings.
Availability on request — contact Chilcutt Medical to confirm availability and lead time.
Rocoto wireless video systems are manufactured by Rocoto Solutions and supplied independently by Chilcutt Medical, LLC. Rocoto products are not Sony products.
What the MD52X does
4K60 HDMI Video
Supports up to 4K (3840 × 2160) at 60 fps, plus 1080p, 1080i and 720p, and 3D (side-by-side, top-bottom). HDMI 2.0 in and out.
Ultra-Low Latency
Ultra-low wireless transmission latency for real-time video.
Rocoto 2.0 Video Matrix
Control the wireless video matrix from a single point for enhanced workflow efficiency.
CMU Remote Management
Supports the Rocoto Central Management Unit (CMU) for remote device pairing and configuration.
Multi-Device Routing
One transmitter can feed up to four receivers, and one receiver can switch among up to four transmitters.
Robust, Coexisting Link
Reliable in line-of-sight and non-line-of-sight conditions. Up to 6 transmitters in the same operating room.
Secure Connection
Proprietary protocol and encrypted video link (AES-256, ECC key exchange) with no transfer of personalized data.
Plug-and-Play
Fast and easy setup, no configuration required. VESA mountable with kits AMN_VESA_KIT01 and AMN_VESA_KIT02.
Where the MD52X fits
- ORs with multiple video sources and displays
- Routing video among several monitors
- Endoscopy systems
- Clinical microscopes
- Robotic surgery
- Devices mounted behind displays or in protective housings
MD52X Specifications
Certifications and regulatory status as stated by Rocoto in this model’s product documentation. Chilcutt Medical does not independently verify FDA listing status; current listing can be confirmed in the FDA establishment registration and device listing database.
| Specification | Value |
|---|---|
| Part Numbers | Transmitter: MDWL2_B1P1TX · Receiver: MDWL2_B3P1RX |
| Video Input (TX) | 1x HDMI 2.0 Type-A |
| Video Outputs | TX: 1x HDMI 2.0 Type-A · RX: 1x HDMI 2.0 Type-A |
| Supported Resolutions | 2D: 4Kp23.98–60, 1080p23.98–60, 1080i50/59.94/60, 720p50/59.94/60 · 3D: 4Kp and 1080p (side-by-side, top-bottom) |
| Color Sampling | RGB/YCbCr 4:4:4/4:2:2/4:2:0 |
| Delay (TX to RX) | ~1 ms |
| Audio | Embedded HDMI audio, 2 channel, 48 kHz 24-bit PCM |
| Rocoto 2.0 Network | Supports Rocoto Central Management Unit (CMU) for network management from a single device |
| Compatibility | TX: MD52X receiver · RX: MD52X transmitter, HM11X |
| Wireless Bands | 5 GHz DFS and non-DFS, plus UNII-5 (5.925–6.425 GHz). Frequencies and channels depend on regional approvals. |
| Bandwidth | 40 MHz |
| Encryption | AES-256, ECC key exchange |
| Range | Approximately 100 ft (30 m) |
| Multicast | TX streams to up to 4 receivers; RX can switch between 4 transmitters |
| Coexistence | Up to 6 sets in the same location |
| Interfaces | OLED screen with menu navigation and pairing buttons; API and update via USB-C |
| Dimensions | 7.9" × 5.9" × 1.6" (200 × 150.1 × 40 mm) |
| Power | 12 V DC, 2.1 mm barrel connector · TX 10.3 W, RX 8.6 W |
| Operating Temperature | 0–40 °C |
| Certifications | ISO 13485:2016 · FDA Listed — Class I, 510(k) Exempt (per Rocoto) · IEC 60601-1 · IEC 60601-1-2 · FCC CFR 47 Part 15 |
MD52X downloads
Rocoto MD52X questions
Is the Rocoto MD52X a Sony product?
No. Rocoto wireless video systems are manufactured by Rocoto Solutions and supplied independently by Chilcutt Medical, LLC. Rocoto products are not Sony products.
What video inputs and outputs does the Rocoto MD52X have?
Per Rocoto’s product documentation:
- Video Input (TX): 1x HDMI 2.0 Type-A
- Video Outputs: TX: 1x HDMI 2.0 Type-A · RX: 1x HDMI 2.0 Type-A
Before you order, ask us to confirm compatibility with your video sources, monitors and recorders.
Which other Rocoto products work with the Rocoto MD52X?
- Rocoto HM11X — Head-mounted camera (to MD52X receiver)
- CMU — Rocoto Central Management Unit
Where can I download the Rocoto MD52X brochure and spec sheet?
How do I request a quote for the Rocoto MD52X?
Availability on request — contact Chilcutt Medical to confirm availability and lead time. Request a quote or call Sam Chilcutt at 615-406-3294. Chilcutt Medical handles equipment selection, quotations and purchasing.
