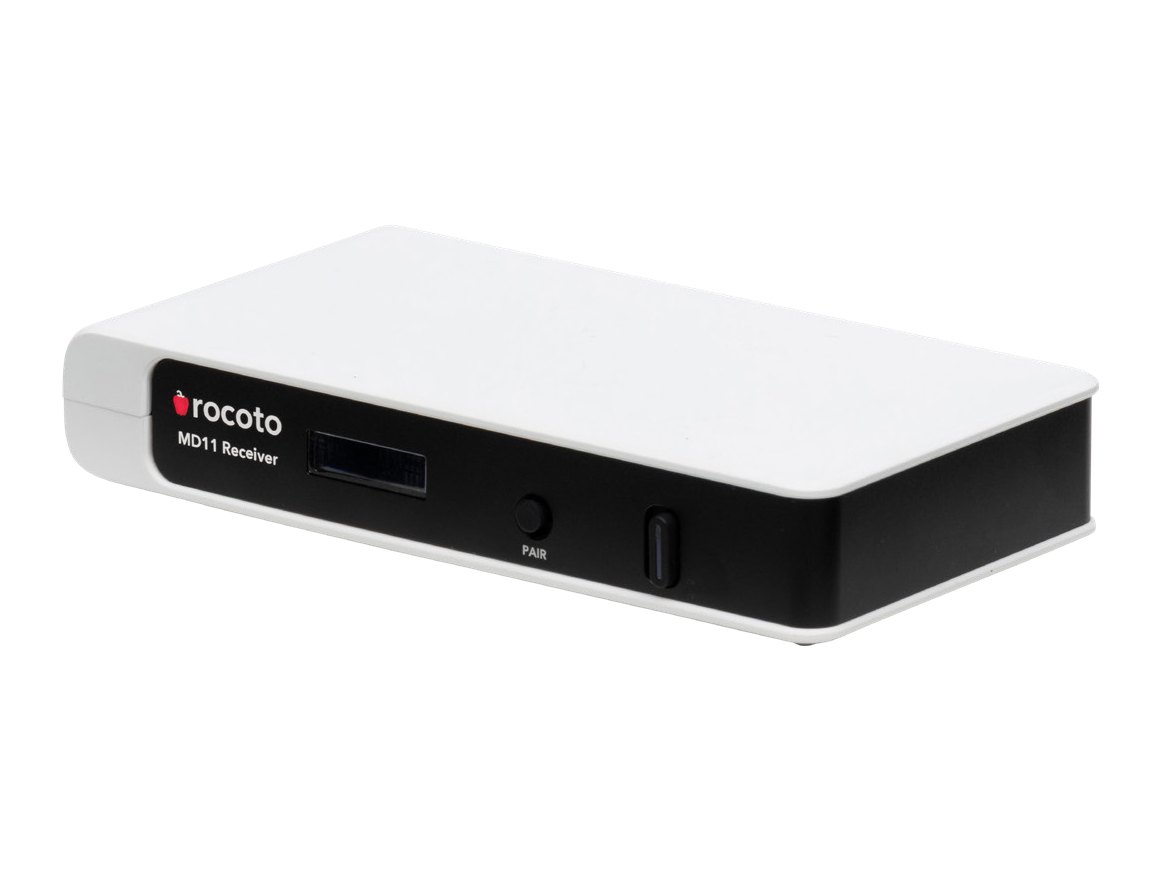

Rocoto MD11Medical Wireless 4K30 Video System
FDA Listed — Class I, 510(k) Exempt (per Rocoto)The MD11 is Rocoto’s compact, straightforward wireless HDMI link. A small transmitter and receiver carry up to 4K30 video from C-arms, surgical cameras, endoscopy systems and robotic surgery sources to secondary monitors with ultra-low wireless transmission latency, eliminating cable clutter. One transmitter can send the same video to up to four receivers.
Rocoto wireless video systems are manufactured by Rocoto Solutions and supplied independently by Chilcutt Medical, LLC. Rocoto products are not Sony products.
What the MD11 does
4K30 over HDMI
Up to 4Kp30, plus 1080p60, 1080i and 720p, over HDMI 1.4. Resolutions above 1080p60 use 40 MHz bandwidth.
Ultra-Low Latency
Ultra-low wireless transmission latency for real-time video.
Multicast and Switching
One transmitter streams to up to four receivers; a receiver can switch among up to four transmitters.
Compact Units
Transmitter and receiver each measure 6" × 3.1" × 1" (151.4 × 79 × 25 mm) in a milled aluminum chassis.
HDMI Loop-Through
The transmitter provides an HDMI output alongside its HDMI input.
Secure, Coexisting Link
AES-256 encryption with RSA-1024 key exchange. Coexists with Wi-Fi on the 5 GHz band; up to 6 sets at the same location.
Plug-and-Play
Fast and easy setup with no configuration required. Quick pairing by button; reliable in line-of-sight and non-line-of-sight conditions.
Where the MD11 fits
- C-arms to secondary monitors
- Surgical cameras
- Endoscopy systems
- Robotic surgery video
- Simple point-to-point HDMI wireless connections
MD11 Specifications
Certifications and regulatory status as stated by Rocoto in this model’s product documentation. Chilcutt Medical does not independently verify FDA listing status; current listing can be confirmed in the FDA establishment registration and device listing database.
| Specification | Value |
|---|---|
| Part Numbers | Transmitter: MDWL1_C1N1TX · Receiver: MDWL1_B1N1RX |
| Video Input (TX) | 1x HDMI 1.4 Type-A |
| Video Outputs | TX: 1x HDMI 1.4 Type-A · RX: 1x HDMI 1.4 Type-A |
| Supported Resolutions | 4Kp30/29.97/25/24/23.98, 1080p60/59.94/50/30/29.97/25/24/23.98, 1080i60/59.94/50, 720p60/59.94/50 (above 1080p60 in 40 MHz bandwidth only) |
| Delay (TX to RX) | ~1 ms |
| Audio | Embedded HDMI audio, 2 channel, 48 kHz 24-bit PCM |
| Wireless Bands | 5 GHz (DFS: 5.250–5.350 / 5.470–5.725 GHz; non-DFS: 5.150–5.250 / 5.725–5.850 GHz). Frequencies and channels depend on regional approvals. |
| Bandwidth | 20 MHz / 40 MHz |
| Encryption | AES-256, RSA-1024 key exchange |
| Range | Approximately 100 ft (30 m) |
| Multicast | TX streams to up to 4 receivers; RX can switch between 4 transmitters |
| Coexistence | Up to 6 sets at the same location |
| Dimensions | 6" × 3.1" × 1" (151.4 × 79 × 25 mm), TX and RX |
| Weight | TX: 10.4 oz (296 g) · RX: 11.2 oz (317 g) |
| Power | 12 V DC, 2.1 mm barrel connector · TX 6 W, RX 7 W |
| Operating Environment | 0–40 °C (32–104 °F), 25–75% relative humidity |
| Certifications | ISO 13485:2016 · FDA Listed — Class I, 510(k) Exempt (per Rocoto) · IEC 60601-1 · IEC 60601-1-2 · FCC CFR 47 Part 15 |
MD11 downloads
Rocoto MD11 questions
Is the Rocoto MD11 a Sony product?
No. Rocoto wireless video systems are manufactured by Rocoto Solutions and supplied independently by Chilcutt Medical, LLC. Rocoto products are not Sony products.
What video inputs and outputs does the Rocoto MD11 have?
Per Rocoto’s product documentation:
- Video Input (TX): 1x HDMI 1.4 Type-A
- Video Outputs: TX: 1x HDMI 1.4 Type-A · RX: 1x HDMI 1.4 Type-A
Before you order, ask us to confirm compatibility with your video sources, monitors and recorders.
Which other Rocoto products work with the Rocoto MD11?
- Rocoto MD62 — Wireless video system
Where can I download the Rocoto MD11 brochure and spec sheet?
How do I request a quote for the Rocoto MD11?
Request a quote or call Sam Chilcutt at 615-406-3294. Chilcutt Medical handles equipment selection, quotations and purchasing.
