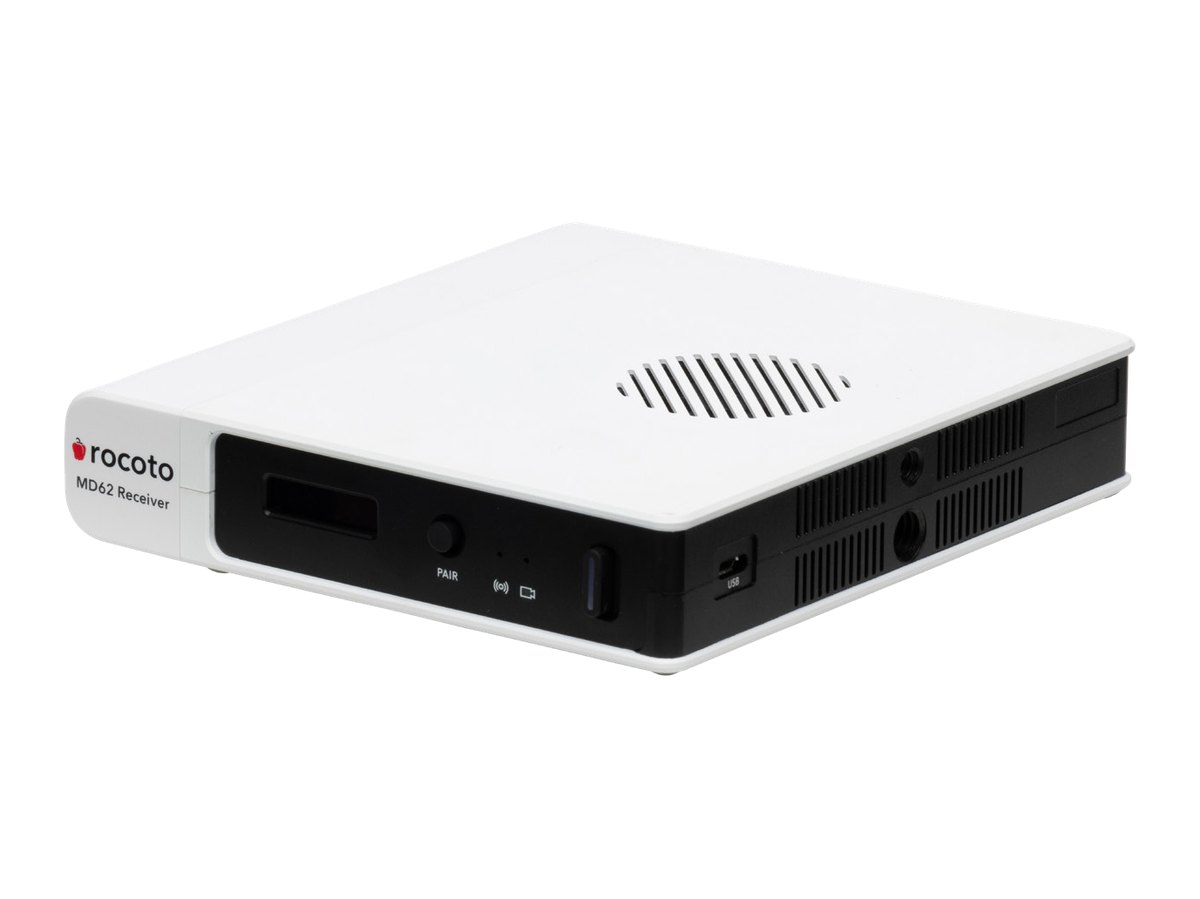

Rocoto MD624K60 Medical Wireless Video Link System
FDA Listed — Class I, 510(k) Exempt (per Rocoto)The MD62 is Rocoto’s premium, high-performance wireless video link: a transmitter and receiver that carry 4K60 video from an endoscopy system, clinical microscope, C-arm or robotic surgery source to a secondary monitor or recorder with ultra-low wireless transmission latency. Both units offer HDMI and 12G-SDI, so it fits virtually any medical imaging device, and one transmitter can feed up to four receivers.
Rocoto wireless video systems are manufactured by Rocoto Solutions and supplied independently by Chilcutt Medical, LLC. Rocoto products are not Sony products.
What the MD62 does
4K60 Video
Supports up to UHD 4K (3840 × 2160) at 60 fps, plus 1080p, 1080i and 720p, and 3D (side-by-side, top-bottom, line-by-line).
Sub-Millisecond Latency
Sub-millisecond wireless transmission latency, per Rocoto, for real-time surgical video.
HDMI and 12G-SDI
Accepts 12G-SDI or HDMI input and outputs both 12G-SDI and HDMI. The transmitter also provides a 12G-SDI loop-out.
Multicast to 4 Receivers
One transmitter streams to up to four receivers simultaneously; a receiver can switch between up to four transmitters.
Robust, Coexisting Link
Reliable in line-of-sight and non-line-of-sight conditions. Up to 6 transmitters in the same operating room, coexisting with Wi-Fi on the 5 GHz band.
Advanced MIMO
4×5 MIMO, per Rocoto, engineered for reliable performance in RF-dense operating rooms.
Secure Connection
Proprietary protocol and encrypted video link (AES-256) with no transfer of personalized data.
Plug-and-Play
Fast setup with no configuration required. Quick pairing by button.
VESA Mountable
Milled aluminum chassis, compatible with Rocoto VESA mounting kits AMN_VESA_KIT01 and AMN_VESA_KIT02.
Where the MD62 fits
- Endoscopy systems to secondary monitors
- Clinical / surgical microscopes
- C-arms
- Robotic surgery video
- Hybrid ORs
- Sending live video to recorders and observation displays
- SDI-based OR video infrastructure
MD62 Specifications
Certifications and regulatory status as stated by Rocoto in this model’s product documentation. Chilcutt Medical does not independently verify FDA listing status; current listing can be confirmed in the FDA establishment registration and device listing database.
| Specification | Value |
|---|---|
| Part Numbers | Transmitter: MDWL2_B1J1TX · Receiver: MDWL2_B1J1RX |
| Video Inputs (TX) | 1x 12G-SDI (SMPTE 2082-1), 1x HDMI 2.0 Type-A |
| Video Outputs | TX: 1x 12G-SDI loop-out · RX: 2x 12G-SDI, 1x HDMI 2.0 Type-A |
| Supported Resolutions | 2D: 4Kp23.98–60, 1080p23.98–60, 1080i50/59.94/60, 720p50/59.94/60 · 3D: 4Kp and 1080p (side-by-side, top-bottom, line-by-line) |
| Color Sampling | SDI: YCbCr 4:2:2 10-bit · HDMI: RGB/YCbCr 4:4:4/4:2:2 |
| Delay (TX to RX) | ~1 ms |
| Audio | Embedded SDI/HDMI audio, 2 channel, 48 kHz 24-bit PCM |
| Wireless Bands | 5 GHz (DFS: 5.250–5.350 / 5.470–5.725 GHz; non-DFS: 5.150–5.250 / 5.725–5.850 GHz). Frequencies and channels depend on regional approvals. |
| Bandwidth | 20 MHz / 40 MHz |
| Encryption | AES-256, RSA-1024 key exchange |
| Range | Approximately 100 ft (30 m) |
| Multicast | TX streams to up to 4 receivers; RX can switch between 4 transmitters |
| Coexistence | Up to 6 sets in the same location |
| Dimensions | TX: 5.9" × 3.6" × 1.1" (149 × 91.2 × 27.1 mm) · RX: 5.1" × 5.5" × 1.1" (129 × 138.8 × 27.1 mm) |
| Weight | TX: 12.7 oz (360 g) · RX: 15.3 oz (434 g) |
| Power | 12 V DC, 2.1 mm barrel connector |
| Operating Environment | 0–40 °C (32–104 °F), 25–75% relative humidity |
| Certifications | ISO 13485:2016 · FDA Listed — Class I, 510(k) Exempt (per Rocoto) · IEC 60601-1 · IEC 60601-1-2 · FCC CFR 47 Part 15 |
MD62 downloads
Rocoto MD62 questions
Is the Rocoto MD62 a Sony product?
No. Rocoto wireless video systems are manufactured by Rocoto Solutions and supplied independently by Chilcutt Medical, LLC. Rocoto products are not Sony products.
What video inputs and outputs does the Rocoto MD62 have?
Per Rocoto’s product documentation:
- Video Inputs (TX): 1x 12G-SDI (SMPTE 2082-1), 1x HDMI 2.0 Type-A
- Video Outputs: TX: 1x 12G-SDI loop-out · RX: 2x 12G-SDI, 1x HDMI 2.0 Type-A
Before you order, ask us to confirm compatibility with your video sources, monitors and recorders.
Which other Rocoto products work with the Rocoto MD62?
- Rocoto MD11 — Wireless video system
Where can I download the Rocoto MD62 brochure and spec sheet?
How do I request a quote for the Rocoto MD62?
Request a quote or call Sam Chilcutt at 615-406-3294. Chilcutt Medical handles equipment selection, quotations and purchasing.
