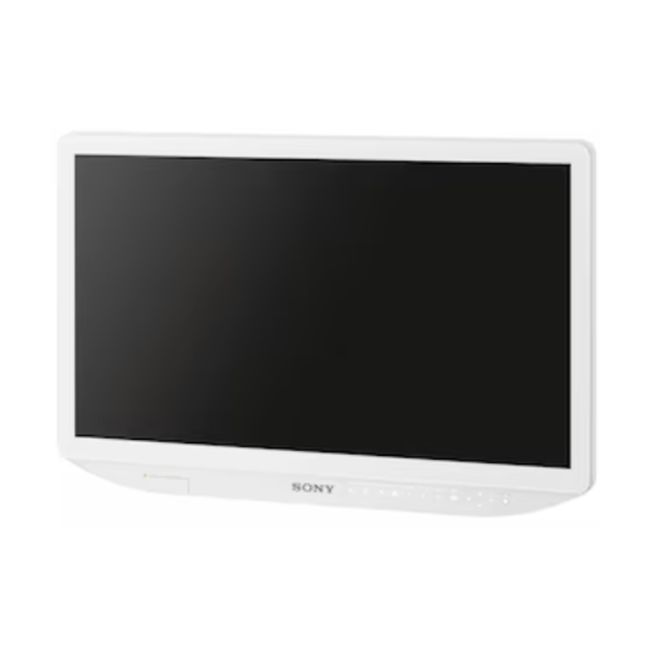

Sony LMD-2435MD24" Full HD LCD Monitor
The LMD-2435MD is a compact 24-inch Full HD surgical monitor intended for viewing 2D color video displays from surgical endoscopic/laparoscopic camera systems and other compatible medical imaging systems. Suitable for hospital operating rooms, surgical centers, clinics, and doctor's offices.
What sets the LMD-2435MD apart
Full HD Resolution
1920 x 1080 resolution on a 24-inch display offers clear and bright 2D color video images for surgical procedures.
Narrow Bezel Design
Narrow bezel achieves a wider display area despite the compact body, maximizing viewing space.
Variety of Inputs
Equipped with Video, S Video, and HD-15 inputs in addition to DVI-D and HD/SD-SDI for broad compatibility.
Fan-less Operation
Fan-less design enables silent operation and less air circulation, ideal for clean surgical environments.
Ergonomic Design
Easy-to-hold ergonomic design enables quick monitor position adjustment. VESA mounting (100x100mm) for flexible installation.
LED Navigation
LED navigated control panel operation enables easy setting even in dark environments. Three CUSTOM buttons for commonly used functions.
LMD-2435MD Specifications
| Specification | Value |
|---|---|
| Panel | a-Si TFT Active Matrix LCD with IPS |
| Screen Size | 23 7/8 inches (604.7 mm diagonal) |
| Resolution | 1920 x 1080 pixels (Full HD) |
| Aspect Ratio | 16:9 |
| Backlight | LED |
| Brightness | 300 cd/m² (Typical) |
| Contrast Ratio | 1000:1 |
| Colors | Approx. 16.7 million |
| Gamma | 1.8, 2.0, 2.2, 2.4, 2.6, DICOM |
| Viewing Angle | 89°/89°/89°/89° (Typical) |
| DVI-D Input/Output | DVI-D (x1 each) |
| SDI Input | BNC (x1) HD/SD-SDI |
| Power Consumption | Approx. 57 W (max.) |
| Dimensions | 572 x 376 x 78 mm (22 5/8 x 14 7/8 x 3 1/8 in) |
| Mass | Approx. 6.7 kg (14 lb 12 oz) |
| VESA Mount | 100 x 100 mm |
Inputs & Outputs
Buying the Sony LMD-2435MD
| Model | Sony LMD-2435MD — 24" Full HD LCD Monitor |
| Manufacturer | Sony |
| Supplied by | Chilcutt Medical, LLC — Authorized Sony Medical Systems Integrator |
| Documentation | Sony LMD-2435MD brochure (PDF) Sony datasheet (PDF, pro.sony) Sony product page (pro.sony) Chilcutt Medical Product Summary (PDF) |
| Federal & VA | SAM.gov registered · CAGE 20KG8 · Federal & VA purchasing |
| Quotes | Request a quote or call 615-406-3294 |
Sony LMD-2435MD questions
What video connections does the Sony LMD-2435MD have?
Per Sony’s specifications: HD/SD-SDI (BNC), DVI-D (IN/OUT), HD-15 (D-sub), Composite Video (BNC), S-Video, RS-232C, RJ-45, 5V DC Output. The full list is in the specifications above.
Before you order, ask us to confirm compatibility with your camera system, recorder or display.
Where can I download the Sony LMD-2435MD brochure and technical documents?
How do I get a quote for the Sony LMD-2435MD?
Request a quote or call Sam Chilcutt at 615-406-3294. Quotes come from Chilcutt Medical, LLC, an Authorized Sony Medical Systems Integrator.
Can VA and other federal facilities buy the Sony LMD-2435MD from Chilcutt Medical?
Chilcutt Medical, LLC is registered in SAM.gov (CAGE 20KG8) and quotes federal and VA facilities. See Federal & VA purchasing.
