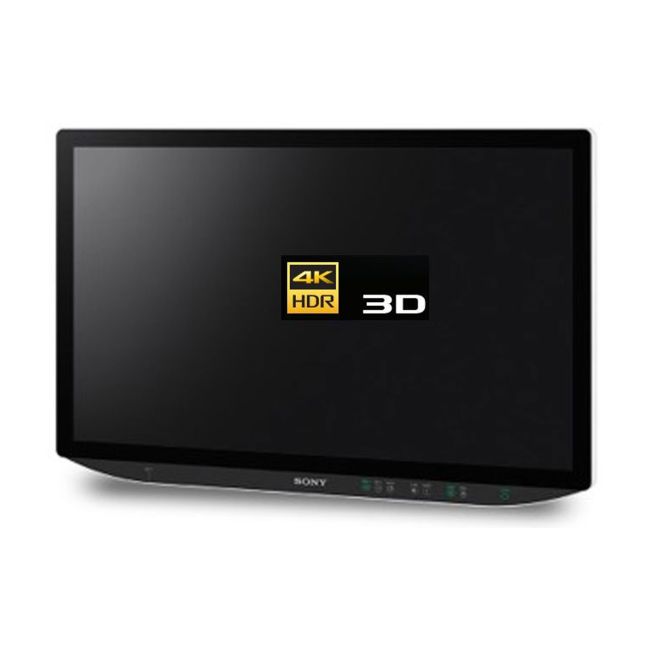

Sony LMD-XH550MT55" 4K 3D/2D LCD Display
A new generation 55-inch 4K surgical display with 2D/3D capability. Sony’s HDR with Local Dimming Technology provides exceptional performance with two times the peak brightness, deeper blacks, and advanced anti-reflection panel technology for immersive surgical visualization.
What sets the LMD-XH550MT apart
Glasses-Free 3D
Large-format 3D and 2D display in HD and 4K. Supports side-by-side, line-by-line, top & bottom, and dual stream 3D formats.
Local Dimming + HDR
Sony’s Local Dimming Technology achieves 1,500 cd/m² peak brightness and 1,000,000:1 contrast ratio. HLG HDR support for realistic imaging.
A.I.M.E. Technology
Advanced Image Multiple Enhancer adjusts color, contrast, and shadow visibility for more comfortable viewing.
BT.2020 Wide Color Gamut
Wide color gamut conforming to ITU-R BT.2020 for better color reproduction and realistic visualization.
Wide Range of Display Modes
PIP/POP with main 3D/2D and sub 2D picture, three-screen 2D display, and 180° image rotation.
Easy to Clean
Smooth surface and streamlined back shape for easy wipe-down. IP45 front / IP32 others rating.
LMD-XH550MT Specifications
| Specification | Value |
|---|---|
| Panel | TFT Active Matrix LCD with IPS |
| Screen Size | 54 3/4 inches (1387.8 mm diagonal) |
| Resolution | 3,840 x 2,160 pixels (4K) |
| Aspect Ratio | 16:9 |
| Backlight | LED with Local Dimming |
| Peak Brightness | 1,500 cd/m² (Typical, Peak) |
| Contrast Ratio | 1,000,000:1 (Typical) |
| 3D Viewing Angle | 37° at >1,000mm, crosstalk <7% |
| Color Depth | 10 bit (1,073,741,824 colors) |
| Gamma | 1.8, 2.0, 2.2, 2.4, 2.6, DICOM, Highlight, HLG |
| SDI Input | BNC (x2) 12G/3G/HD-SDI, BNC (x1) 3G/HD/SD-SDI |
| HDMI Input | HDMI (x1) HDCP 2.3 |
| DisplayPort | DisplayPort (x1) SST HDCP 1.3 |
| IP Rating | IP45 (front) / IP32 (others) |
| Power Consumption | Approx. 290 W (max.) |
| Dimensions | 1249.6 x 763.3 x 92.8 mm (49 1/4 x 30 1/8 x 3 3/4 in) |
| Mass | Approx. 27 kg (59 lb 8 oz) |
| VESA Mount | 200 x 200 mm / 400 x 200 mm |
Inputs & Outputs
Buying the Sony LMD-XH550MT
| Model | Sony LMD-XH550MT — 55" 4K 3D/2D LCD Display |
| Manufacturer | Sony |
| Supplied by | Chilcutt Medical, LLC — Authorized Sony Medical Systems Integrator |
| Documentation | Sony LMD-XH550MT brochure (PDF) Sony datasheet (PDF, pro.sony) Sony product page (pro.sony) Chilcutt Medical Product Summary (PDF) |
| Federal & VA | SAM.gov registered · CAGE 20KG8 · Federal & VA purchasing |
| Quotes | Request a quote or call 615-406-3294 |
Sony LMD-XH550MT questions
What video connections does the Sony LMD-XH550MT have?
Per Sony’s specifications: 12G-SDI (x2 IN/OUT), 3G-SDI (IN/OUT), CLONE SDI OUT, HDMI, DisplayPort, DVI-D, RS-232C, RJ-45, Remote (Stereo mini), 12V/5V DC Output. The full list is in the specifications above.
Before you order, ask us to confirm compatibility with your camera system, recorder or display.
Where can I download the Sony LMD-XH550MT brochure and technical documents?
How do I get a quote for the Sony LMD-XH550MT?
Request a quote or call Sam Chilcutt at 615-406-3294. Quotes come from Chilcutt Medical, LLC, an Authorized Sony Medical Systems Integrator.
Can VA and other federal facilities buy the Sony LMD-XH550MT from Chilcutt Medical?
Chilcutt Medical, LLC is registered in SAM.gov (CAGE 20KG8) and quotes federal and VA facilities. See Federal & VA purchasing.
