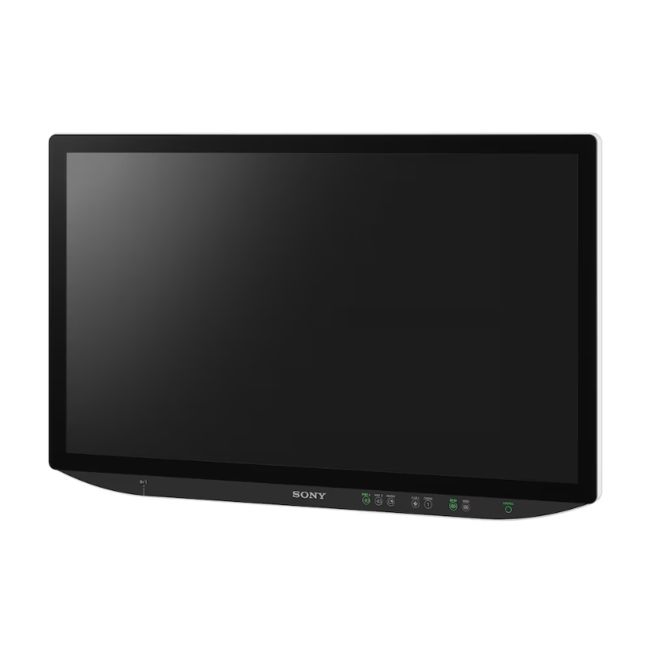

Sony LMD-XH320MT32" 4K 3D/2D LCD Display
A new generation 32-inch 4K surgical display with 2D/3D capability. Sony's HDR with Local Dimming Technology delivers exceptional performance with deeper blacks, brighter highlights, and reduced reflections. Supports various 3D formats including side-by-side, line-by-line, and top & bottom.
What sets the LMD-XH320MT apart
Glasses-Free 3D
Displays 3D and 2D signals in HD and 4K. Supports side-by-side, line-by-line, top & bottom, and dual stream (SDI) 3D formats. 3D/2D mode switchable via front panel.
Local Dimming + HDR
Sony’s Local Dimming Technology achieves 1,750 cd/m² peak brightness and 1,000,000:1 contrast. HLG HDR support for realistic image reproduction.
A.I.M.E. Technology
Advanced Image Multiple Enhancer adjusts color, contrast, and visibility of shadow areas for more comfortable viewing during procedures.
BT.2020 Wide Color Gamut
Wide color gamut conforming to ITU-R BT.2020 for better color reproduction and realistic visualization.
CLONE Output
Output the same image as displayed (including A.I.M.E., PIP). Resolution selectable between 4K and HD for easy recording.
Lightweight & Flexible
Only 10.5 kg for installation flexibility. Choice of direct AC in or AC adaptor. DC input available for flexible power options.
LMD-XH320MT Specifications
| Specification | Value |
|---|---|
| Panel | TFT Active Matrix LCD with IPS |
| Screen Size | 31 5/8 inches (800.757 mm diagonal) |
| Resolution | 3,840 x 2,160 pixels (4K) |
| Aspect Ratio | 16:9 |
| Backlight | LED with Local Dimming |
| Peak Brightness | 1,750 cd/m² (Typical, Peak) |
| Contrast Ratio | 1,000,000:1 (Typical) |
| 3D Viewing Angle | 32° at >690mm, crosstalk <7% |
| Color Depth | 10 bit (1,073,741,824 colors) |
| Gamma | 1.8, 2.0, 2.2, 2.4, 2.6, DICOM, Highlight, HLG |
| SDI Input | BNC (x2) 12G/3G/HD-SDI, BNC (x1) 3G/HD/SD-SDI |
| HDMI Input | HDMI (x1) HDCP 2.3 |
| DisplayPort | DisplayPort (x1) SST HDCP 1.3 |
| IP Rating | IP45 (front) / IP32 (others) |
| Power Consumption | Approx. 230 W (max.) |
| Dimensions | 753.9 x 476.3 x 84.7 mm (29 3/4 x 18 7/8 x 3 3/8 in) |
| Mass | Approx. 10.5 kg (23 lb 2 oz) |
| VESA Mount | 100 x 100 mm |
Inputs & Outputs
Buying the Sony LMD-XH320MT
| Model | Sony LMD-XH320MT — 32" 4K 3D/2D LCD Display |
| Manufacturer | Sony |
| Supplied by | Chilcutt Medical, LLC — Authorized Sony Medical Systems Integrator |
| Documentation | Sony LMD-XH320MT brochure (PDF) Sony datasheet (PDF, pro.sony) Sony product page (pro.sony) Chilcutt Medical Product Summary (PDF) |
| Federal & VA | SAM.gov registered · CAGE 20KG8 · Federal & VA purchasing |
| Quotes | Request a quote or call 615-406-3294 |
Sony LMD-XH320MT questions
What video connections does the Sony LMD-XH320MT have?
Per Sony’s specifications: 12G-SDI (x2 IN/OUT), 3G-SDI (IN/OUT), CLONE SDI OUT, HDMI, DisplayPort, DVI-D, RS-232C, RJ-45, Remote (Stereo mini), 12V/5V DC Output, DC Input (26V). The full list is in the specifications above.
Before you order, ask us to confirm compatibility with your camera system, recorder or display.
Where can I download the Sony LMD-XH320MT brochure and technical documents?
How do I get a quote for the Sony LMD-XH320MT?
Request a quote or call Sam Chilcutt at 615-406-3294. Quotes come from Chilcutt Medical, LLC, an Authorized Sony Medical Systems Integrator.
Can VA and other federal facilities buy the Sony LMD-XH320MT from Chilcutt Medical?
Chilcutt Medical, LLC is registered in SAM.gov (CAGE 20KG8) and quotes federal and VA facilities. See Federal & VA purchasing.
