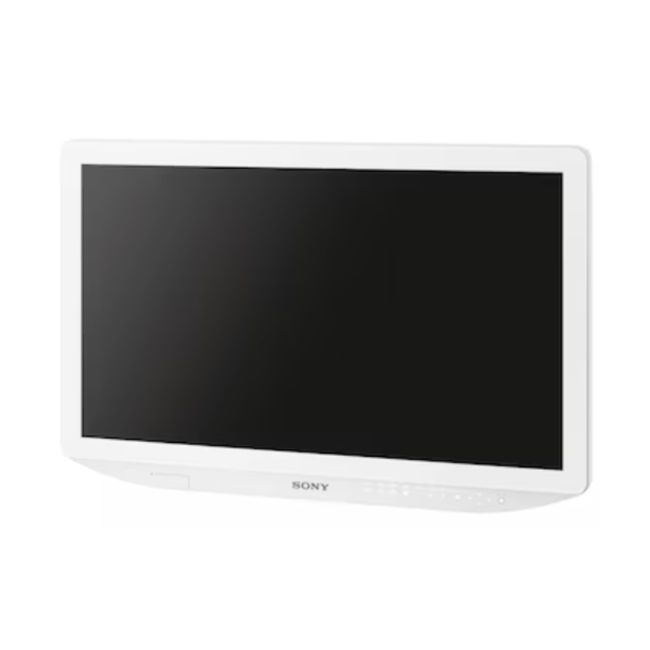

Sony LMD-2735MD27" Full HD LCD Monitor
The LMD-2735MD is a 27-inch Full HD surgical monitor for viewing 2D color video displays from surgical endoscopic/laparoscopic camera systems. Its reliable imaging, compact design, and extensive connectivity make it suitable for hospital operating rooms, surgical centers, and clinics.
What sets the LMD-2735MD apart
Full HD Resolution
1920 x 1080 resolution on a 27-inch display offers clear and bright 2D color video images for surgical procedures.
Narrow Bezel Design
Narrow bezel achieves a wider display area despite the compact body for maximum viewing space.
Variety of Inputs
Equipped with Video, S Video, and HD-15 inputs in addition to DVI-D and HD/SD-SDI for broad compatibility with imaging systems.
Fan-less Operation
Fan-less design enables silent operation and less air circulation, ideal for clean surgical environments.
Edge-to-edge Flush Surface
Flush surface design allows easy wipe-down of liquids and gels off the LCD panel and control buttons for easy cleaning.
Display Modes
Mirror Image, Side-by-Side, Picture-in-Picture, and Picture-out-Picture modes selectable by simple button press.
LMD-2735MD Specifications
| Specification | Value |
|---|---|
| Panel | a-Si TFT Active Matrix LCD with IPS |
| Screen Size | 27 1/8 inches (686 mm diagonal) |
| Resolution | 1920 x 1080 pixels (Full HD) |
| Aspect Ratio | 16:9 |
| Backlight | LED |
| Brightness | 300 cd/m² (Typical) |
| Contrast Ratio | 1000:1 |
| Colors | Approx. 16.7 million |
| Gamma | 1.8, 2.0, 2.2, 2.4, 2.6, DICOM |
| Viewing Angle | 89°/89°/89°/89° (Typical) |
| DVI-D Input/Output | DVI-D (x1 each) |
| SDI Input | BNC (x1) HD/SD-SDI |
| Power Consumption | Approx. 57 W (max.) |
| Dimensions | 660 x 427 x 78 mm (26 x 16 7/8 x 3 1/8 in) |
| Mass | Approx. 8.7 kg (19 lb 3 oz) |
| VESA Mount | 100 x 100 mm |
Inputs & Outputs
Buying the Sony LMD-2735MD
| Model | Sony LMD-2735MD — 27" Full HD LCD Monitor |
| Manufacturer | Sony |
| Supplied by | Chilcutt Medical, LLC — Authorized Sony Medical Systems Integrator |
| Documentation | Sony LMD-2735MD brochure (PDF) Sony datasheet (PDF, pro.sony) Sony product page (pro.sony) Chilcutt Medical Product Summary (PDF) |
| Federal & VA | SAM.gov registered · CAGE 20KG8 · Federal & VA purchasing |
| Quotes | Request a quote or call 615-406-3294 |
Sony LMD-2735MD questions
What video connections does the Sony LMD-2735MD have?
Per Sony’s specifications: HD/SD-SDI (BNC), DVI-D (IN/OUT), HD-15 (D-sub), Composite Video (BNC), S-Video, RS-232C, RJ-45, 5V DC Output. The full list is in the specifications above.
Before you order, ask us to confirm compatibility with your camera system, recorder or display.
Where can I download the Sony LMD-2735MD brochure and technical documents?
How do I get a quote for the Sony LMD-2735MD?
Request a quote or call Sam Chilcutt at 615-406-3294. Quotes come from Chilcutt Medical, LLC, an Authorized Sony Medical Systems Integrator.
Can VA and other federal facilities buy the Sony LMD-2735MD from Chilcutt Medical?
Chilcutt Medical, LLC is registered in SAM.gov (CAGE 20KG8) and quotes federal and VA facilities. See Federal & VA purchasing.
