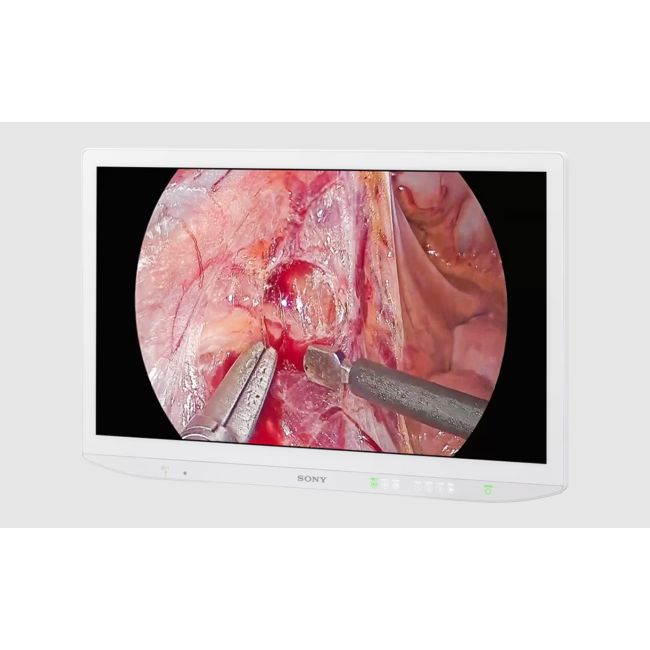

Sony LMD-27M1MD27" 4K HDR Mini-LED Surgical Display
Sony's M1 Series 27-inch 4K HDR surgical display features Backlight Master Drive technology with mini-LED backlighting for exceptional brightness and contrast. VESA DisplayHDR 1000 certified with BT.2020 wide color gamut for realistic visualization of surgical images.
What sets the LMD-27M1MD apart
Backlight Master Drive
Sony's advanced Local Dimming Technology precisely controls a dense array of mini LEDs to ensure stunning brightness and deep blacks with a peak brightness of 2,250 cd/m².
VESA DisplayHDR 1000
Certified HDR performance. HLG and PQ signal support reproduces greater detail in both highlights and dark areas for enhanced surgical visualization.
BT.2020 Wide Color Gamut
LCD and signal processing technology achieves a wide color gamut conforming to ITU-R recommendation BT.2020 for superior, realistic color reproduction.
Anti-Reflection Technology
Combines Low Reflection coating and Anti-Glare surface treatment to minimize reflections in brightly-lit operating rooms while maintaining high contrast.
Fanless Design
Fanless cooling system significantly minimizes unwanted airflow disruption in the OR, maintaining clean air environment around the surgical field.
Versatile Connectivity
12G-SDI, HDMI, DisplayPort, and DVI-D inputs/outputs. USB Type-C (5V/1.5A) port powers connected equipment. USB Type-A for configuration transfer.
LMD-27M1MD Specifications
| Specification | Value |
|---|---|
| Panel | TFT Active Matrix LCD with IPS |
| Screen Size | 27 inches (684.7 mm diagonal) |
| Resolution | 3,840 x 2,160 pixels (4K) |
| Aspect Ratio | 16:9 |
| Backlight | Mini LED |
| Peak Brightness | 2,250 cd/m² (Typical, Peak) |
| Contrast Ratio | 1,000,000:1 (Typical) |
| Color Depth | 10 bit (1,073,741,824 colors) |
| HDR | VESA DisplayHDR 1000 Certified |
| Gamma | 1.8, 2.0, 2.2, 2.4, 2.6, DICOM, HLG, PQ |
| Viewing Angle | 89°/89°/89°/89° (Typical) |
| HDMI Input | HDMI (x1) HDCP 2.3 |
| SDI Input | BNC (x1) 12G/6G/3G/HD/SD-SDI |
| DisplayPort | DisplayPort (x1) SST HDCP 1.3 |
| DVI-D | DVI-D (x1) TMDS single link |
| IP Rating | IP45 (front) / IP32 (others) |
| Power Consumption | Approx. 126 W (max.) |
| Dimensions | 655.6 x 426.7 x 79.9 mm (25 7/8 x 16 7/8 x 3 1/4 in) |
| Mass | Approx. 9.2 kg (20 lb 5 oz) |
| VESA Mount | 100 x 100 mm |
Inputs & Outputs
Buying the Sony LMD-27M1MD
| Model | Sony LMD-27M1MD — 27" 4K HDR Mini-LED Surgical Display |
| Manufacturer | Sony |
| Supplied by | Chilcutt Medical, LLC — Authorized Sony Medical Systems Integrator |
| Documentation | Sony LMD-27M1MD brochure (PDF) Sony product page (pro.sony) Chilcutt Medical Product Summary (PDF) |
| Federal & VA | SAM.gov registered · CAGE 20KG8 · Federal & VA purchasing |
| Quotes | Request a quote or call 615-406-3294 |
Sony LMD-27M1MD questions
What video connections does the Sony LMD-27M1MD have?
Per Sony’s specifications: 12G-SDI (IN/OUT), HDMI, DisplayPort (IN/OUT), DVI-D (IN/OUT), USB-C (5V/1.5A), USB-A, RS-232C, RJ-45, Remote (Stereo mini). The full list is in the specifications above.
Before you order, ask us to confirm compatibility with your camera system, recorder or display.
Where can I download the Sony LMD-27M1MD brochure and technical documents?
How do I get a quote for the Sony LMD-27M1MD?
Request a quote or call Sam Chilcutt at 615-406-3294. Quotes come from Chilcutt Medical, LLC, an Authorized Sony Medical Systems Integrator.
Can VA and other federal facilities buy the Sony LMD-27M1MD from Chilcutt Medical?
Chilcutt Medical, LLC is registered in SAM.gov (CAGE 20KG8) and quotes federal and VA facilities. See Federal & VA purchasing.
