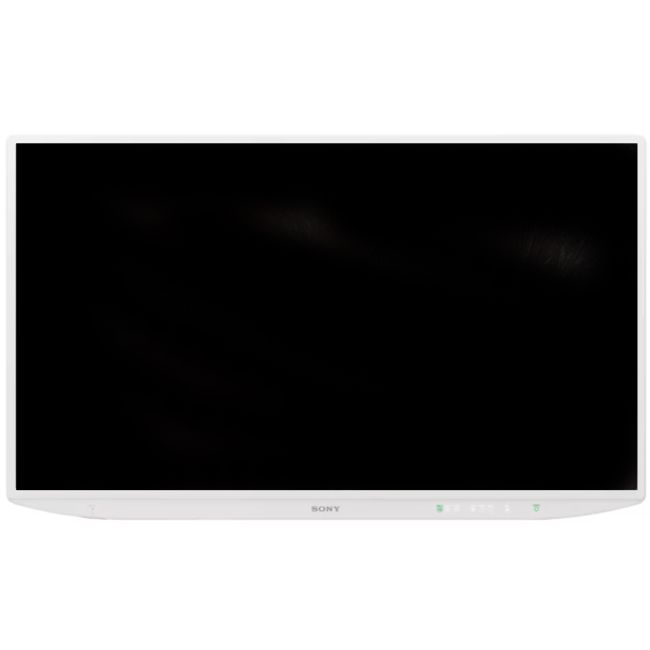

Sony LMD-XH550MD55" 4K 2D LCD Monitor
The LMD-XH550MD medical grade 55-inch monitor delivers high brightness, high contrast, and wide color gamut 4K UHD 2D images. Ideal for hospital operating theaters, surgical centers, and classrooms for education, offering four times the resolution of full HD.
What sets the LMD-XH550MD apart
Local Dimming Technology
Finely tunes LED lighting sources for backlights separately for light and dark zones, achieving peak brightness of 1,500 cd/m² with superior HDR expression.
HDR Compatible
Supports HLG (Hybrid Log-Gamma) signals for more realistic image reproduction. Greater detail in highlights and dark areas — no detail lost in shadows or overexposed highlights.
A.I.M.E. Technology
Sony’s Advanced Image Multiple Enhancer adjusts color, contrast, and shadow visibility for more comfortable viewing during procedures.
BT.2020 Wide Color Gamut
Wider color space than BT.709 for better color reproduction and realistic visualization of surgical images.
CLONE Output
Clone-output connector outputs the same image as displayed (including A.I.M.E. and PIP), allowing easy recording. Resolution selectable between 4K and HD.
Easy to Clean
Smooth surface and streamlined back shape simplify cleaning of the entire monitor. IP45 (front) / IP32 (others) dustproof and waterproof rating.
LMD-XH550MD Specifications
| Specification | Value |
|---|---|
| Panel | TFT Active Matrix LCD with IPS |
| Screen Size | 54 3/4 inches (1387.8 mm diagonal) |
| Resolution | 3,840 x 2,160 pixels (4K) |
| Aspect Ratio | 16:9 |
| Backlight | LED with Local Dimming |
| Peak Brightness | 1,500 cd/m² (Typical, Peak) |
| Contrast Ratio | 1,000,000:1 (Typical) |
| Color Depth | 10 bit (1,073,741,824 colors) |
| Gamma | 1.8, 2.0, 2.2, 2.4, 2.6, DICOM, Highlight, HLG |
| Viewing Angle | 89°/89°/89°/89° (Typical) |
| SDI Input | BNC (x2) 12G/3G/HD-SDI, BNC (x1) 3G/HD/SD-SDI |
| HDMI Input | HDMI (x1) HDCP 2.3 |
| DisplayPort | DisplayPort (x1) SST HDCP 1.3 |
| DVI-D Input | DVI-D (x1) TMDS single link |
| Zoom | 1x, 1.2x, 1.5x, 2x |
| IP Rating | IP45 (front) / IP32 (others) |
| Power Consumption | Approx. 290 W (max.) |
| Dimensions | 1249.6 x 763.3 x 92.8 mm (49 1/4 x 30 1/8 x 3 3/4 in) |
| Mass | Approx. 25 kg (55 lb 1.8 oz) |
| VESA Mount | 200 x 200 mm / 400 x 200 mm |
Inputs & Outputs
Buying the Sony LMD-XH550MD
| Model | Sony LMD-XH550MD — 55" 4K 2D LCD Monitor |
| Manufacturer | Sony |
| Supplied by | Chilcutt Medical, LLC — Authorized Sony Medical Systems Integrator |
| Documentation | Sony LMD-XH550MD brochure (PDF) Sony datasheet (PDF, pro.sony) Sony product page (pro.sony) Chilcutt Medical Product Summary (PDF) |
| Federal & VA | SAM.gov registered · CAGE 20KG8 · Federal & VA purchasing |
| Quotes | Request a quote or call 615-406-3294 |
Sony LMD-XH550MD questions
What video connections does the Sony LMD-XH550MD have?
Per Sony’s specifications: 12G-SDI (x2 IN/OUT), 3G-SDI (IN/OUT), CLONE SDI OUT, HDMI, DisplayPort, DVI-D, RS-232C, RJ-45, Remote (Stereo mini), 12V/5V DC Output. The full list is in the specifications above.
Before you order, ask us to confirm compatibility with your camera system, recorder or display.
Where can I download the Sony LMD-XH550MD brochure and technical documents?
How do I get a quote for the Sony LMD-XH550MD?
Request a quote or call Sam Chilcutt at 615-406-3294. Quotes come from Chilcutt Medical, LLC, an Authorized Sony Medical Systems Integrator.
Can VA and other federal facilities buy the Sony LMD-XH550MD from Chilcutt Medical?
Chilcutt Medical, LLC is registered in SAM.gov (CAGE 20KG8) and quotes federal and VA facilities. See Federal & VA purchasing.
