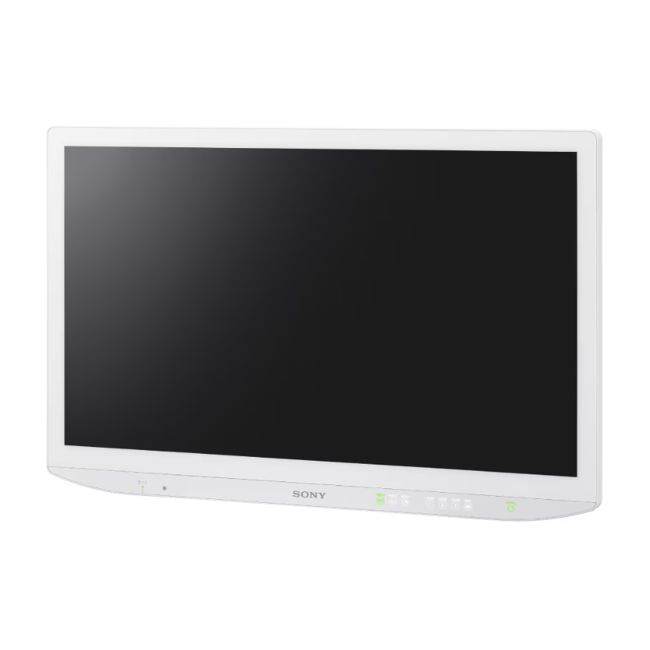

Sony LMD-32M1MD32" 4K HDR Mini-LED Surgical Display
Sony's M1 Series 32-inch 4K HDR surgical display features Backlight Master Drive technology with mini-LED backlighting. VESA DisplayHDR 1000 certified with BT.2020 wide color gamut, providing the ideal balance of screen size and 4K clarity for surgical environments.
What sets the LMD-32M1MD apart
Backlight Master Drive
Sony's advanced Local Dimming Technology precisely controls a dense array of mini LEDs to ensure stunning brightness and deep blacks with a peak brightness of 1,850 cd/m².
VESA DisplayHDR 1000
Certified HDR performance with HLG and PQ signal support for enhanced visualization of fine detail in shadowed areas and overexposed highlights.
BT.2020 Wide Color Gamut
Wide color gamut conforming to ITU-R BT.2020 for superior color reproduction and realistic visualization of surgical images.
Anti-Reflection Technology
Dual reflection suppression: Low Reflection coating reduces reflected light; Anti-Glare surface diffuses incoming light to minimize glare.
Fanless Design
Fanless cooling system minimizes airflow disruption in the OR. Smooth surface and streamlined back shape simplify cleaning.
Auto Brightness Adjustment
Built-in light sensor automatically adjusts panel brightness to match changing ambient lighting conditions, ensuring visibility during procedures like ICG navigation surgery.
LMD-32M1MD Specifications
| Specification | Value |
|---|---|
| Panel | TFT Active Matrix LCD with IPS |
| Screen Size | 31.5 inches (800.1 mm diagonal) |
| Resolution | 3,840 x 2,160 pixels (4K) |
| Aspect Ratio | 16:9 |
| Backlight | Mini LED |
| Peak Brightness | 1,850 cd/m² (Typical, Peak) |
| Contrast Ratio | 1,000,000:1 (Typical) |
| Color Depth | 10 bit (1,073,741,824 colors) |
| HDR | VESA DisplayHDR 1000 Certified |
| Gamma | 1.8, 2.0, 2.2, 2.4, 2.6, DICOM, HLG, PQ |
| Viewing Angle | 89°/89°/89°/89° (Typical) |
| HDMI Input | HDMI (x1) HDCP 2.3 |
| SDI Input | BNC (x1) 12G/6G/3G/HD/SD-SDI |
| DisplayPort | DisplayPort (x1) SST HDCP 1.3 |
| DVI-D | DVI-D (x1) TMDS single link |
| DC Input | DC 26V (for AC adaptor) |
| IP Rating | IP45 (front) / IP32 (others) |
| Power Consumption | Approx. 165 W (max.) |
| Dimensions | 754.8 x 482.8 x 79.9 mm (29 3/4 x 19 1/8 x 3 1/4 in) |
| Mass | Approx. 11.2 kg (24 lb 11 oz) |
| VESA Mount | 100 x 100 mm |
Inputs & Outputs
Buying the Sony LMD-32M1MD
| Model | Sony LMD-32M1MD — 32" 4K HDR Mini-LED Surgical Display |
| Manufacturer | Sony |
| Supplied by | Chilcutt Medical, LLC — Authorized Sony Medical Systems Integrator |
| Documentation | Sony LMD-32M1MD brochure (PDF) Sony product page (pro.sony) Chilcutt Medical Product Summary (PDF) |
| Federal & VA | SAM.gov registered · CAGE 20KG8 · Federal & VA purchasing |
| Quotes | Request a quote or call 615-406-3294 |
Sony LMD-32M1MD questions
What video connections does the Sony LMD-32M1MD have?
Per Sony’s specifications: 12G-SDI (IN/OUT), HDMI, DisplayPort (IN/OUT), DVI-D (IN/OUT), USB-C (5V/1.5A), USB-A, RS-232C, RJ-45, Remote (Stereo mini), DC Input. The full list is in the specifications above.
Before you order, ask us to confirm compatibility with your camera system, recorder or display.
Where can I download the Sony LMD-32M1MD brochure and technical documents?
How do I get a quote for the Sony LMD-32M1MD?
Request a quote or call Sam Chilcutt at 615-406-3294. Quotes come from Chilcutt Medical, LLC, an Authorized Sony Medical Systems Integrator.
Can VA and other federal facilities buy the Sony LMD-32M1MD from Chilcutt Medical?
Chilcutt Medical, LLC is registered in SAM.gov (CAGE 20KG8) and quotes federal and VA facilities. See Federal & VA purchasing.
